Setting up JubileeTV

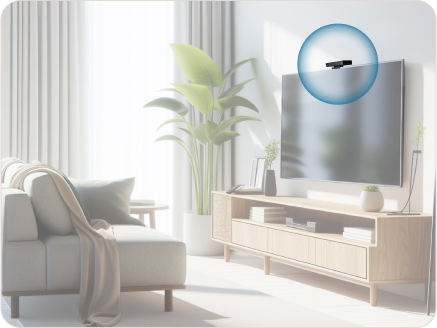

- Let’s start by physically mounting the Console on top of your TV.
JubileeTV can be configured to detect presence (whether someone is in the room) and actions like someone entering/exiting the room.
The Console can better detect presence and actions if it is mounted on top of your TV.
IMPORTANT: The cables from your TV and source devices will need to reach the Console.
There are 2 objectives when mounting the Console on top of your TV.
- The base of the Console has to rest securely on top of your TV.

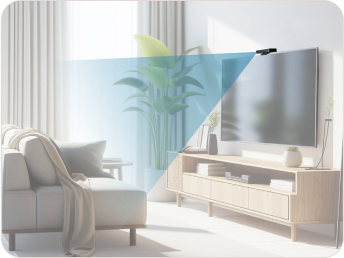

- The front of the Console should point at the location where your loved one sits while watching TV. It may be helpful to have a screwdriver to make final adjustments.
Can’t mount the Console on top of your TV?

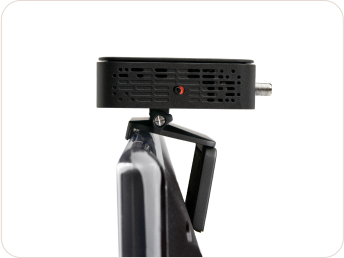

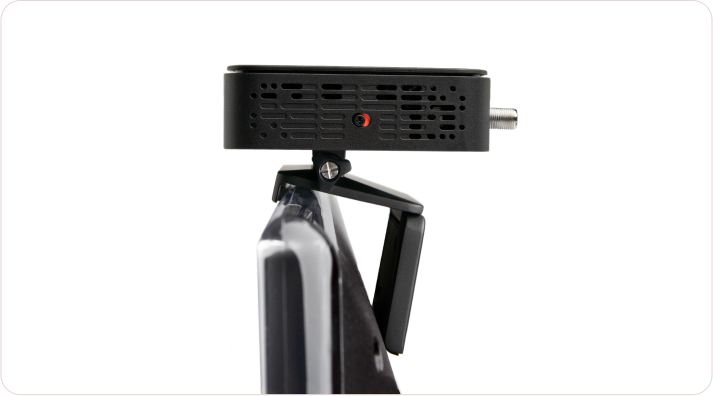

Start with the flap fully open
- Open the flap all the way.
- Rest the Console on top of your TV.
- Put pressure on the back of the Console to check if it feels secure.
Is the Console secure on top of your TV?
Can’t mount the Console on top of your TV?

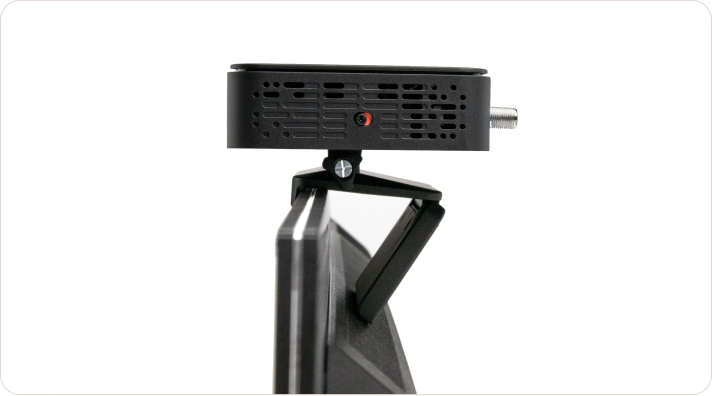

Adjust the flap
- Adjust the angle of the flap until it rests securely against the back of your TV.
- Put pressure on the back of the Console to check if it feels secure.
Is the Console secure on top of your TV?
Can’t mount the Console on top of your TV?
Use included screws for support
- Open the flap all the way.
- Insert and advance the two screws that were included with the Console until they are touching the back of your TV.
- Make adjustments to the screws and the angle of the Console until it rests securely on your TV.
- The position of the screws depends on the thickness of your TV (see examples below).
IMPORTANT: Do not tighten the screws against the back of the TV.
• The screws are intended to help hold the weight of the Console.
• They are NOT supposed to clamp the Console to your TV.

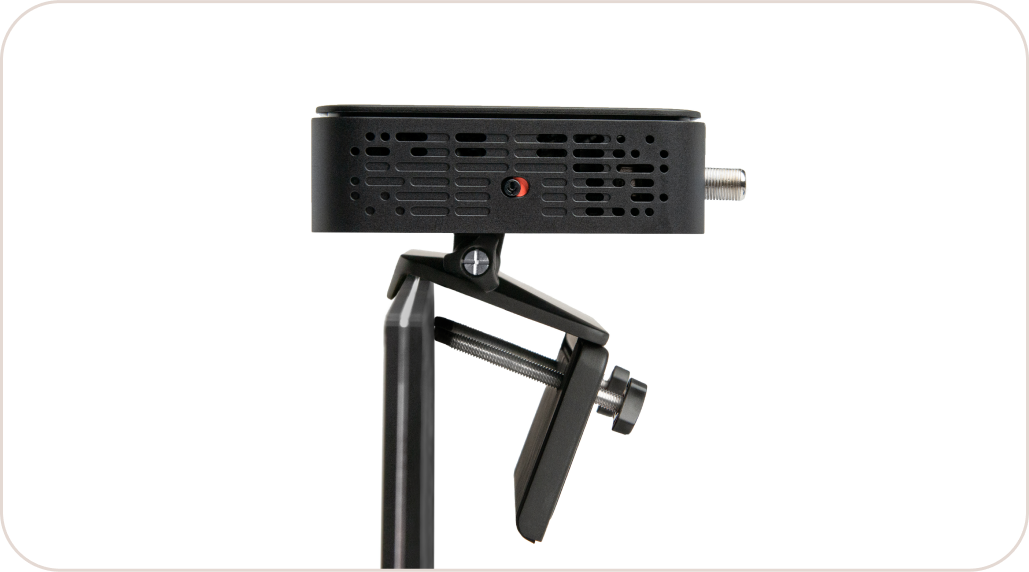

Example 1

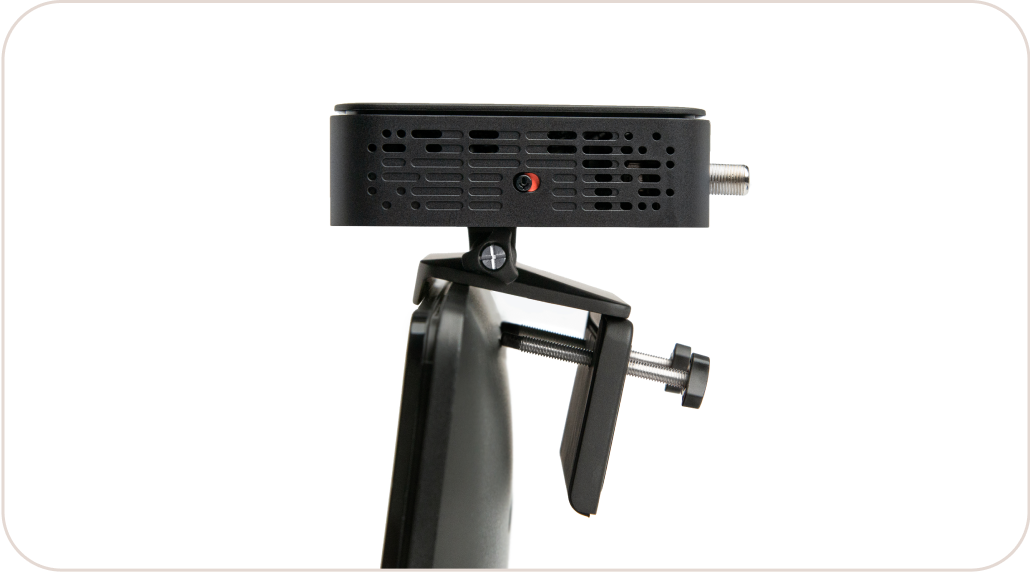

Example 2
Is the Console secure on top of your TV?
Can’t mount the Console on top of your TV?
Next, follow the steps below to make additional adjustments.

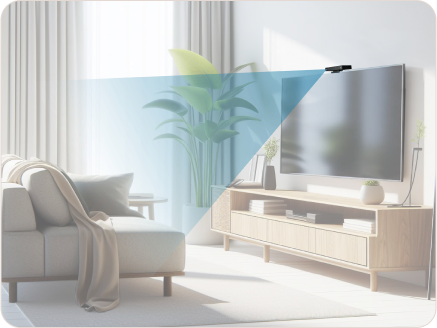

The goal is to have the front of the Console pointed to the area where your loved one sits to watch TV.

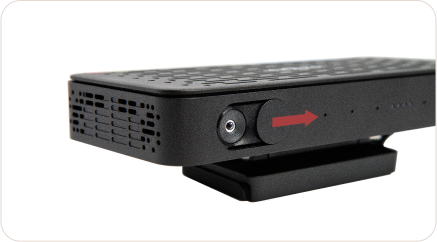

1. Open the lens cover.

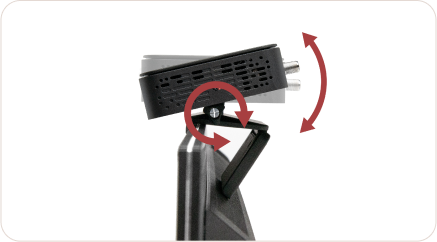

2. Use the knob on the side of the Console to adjust the angle of the camera.

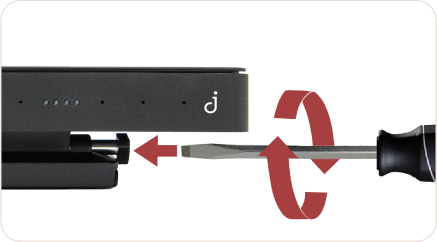

3. If you’re having trouble adjusting the knob, try using a flat-head screwdriver.
IMPORTANT: Do not loosen more than 2 rotations.
These adjustments are not final. We’ll turn the camera on while you’re going through setup on your TV, so you can further adjust the angle if needed.
